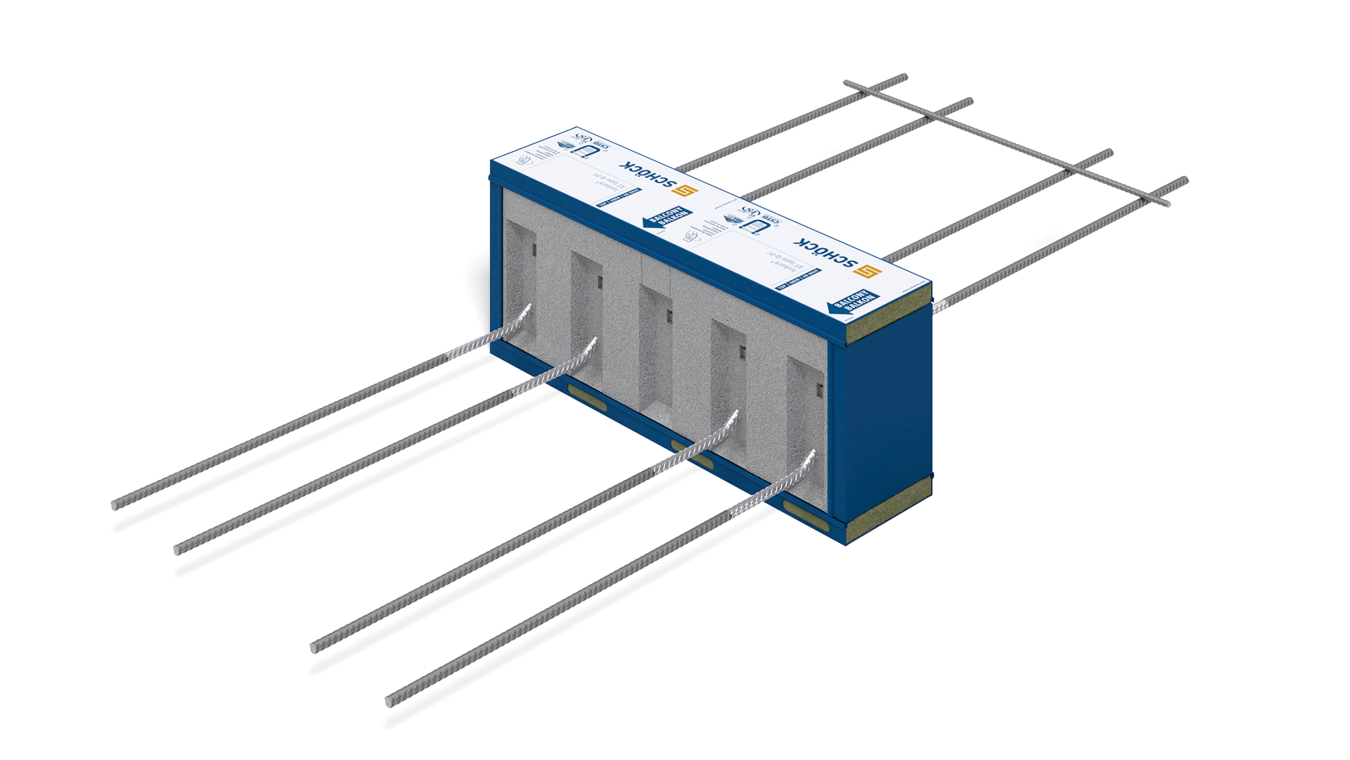

Isokorb® XT
type Q-PZ

Outstanding thermal insulation
With 120 mm thick insulating element and HTE Compact® pressure bearing made of high-performance fine concrete

Reliable impact sound characteristic values
Tested according to new EAD 050001-01-0301 (adopted)

Verified eco-balance data
Supplied with environmental product declaration by the German Institute for Construction and the Environment (IBU)

Convenient design
Load-bearing thermal insulation elements and shear force dowels for the structural components balcony, parapet and reinforced concrete balustrade can be conveniently sized with the user-friendly Schöck Scalix® web-based software.

Verified by supervising authority
Planning reliability for national and European projects with European Technical Assessment (ETA-17/0261) and general type approval (aBG no. Z-15.7-338)

Certified fire protection
The fire performance classification REI 120 is defined in the European Technical Assessment (ETA-17/0261).

Use in the event of seismic activity
Supports the measurement of seismic activity according to aBG Z-15.7-338

Passive house component
Certified by Passive House Institute in Darmstadt

Installation reliability
Flush pressure bearings, installation instructions available to download from the website and via QR code on the products, labelling and arrows simplify installation.
